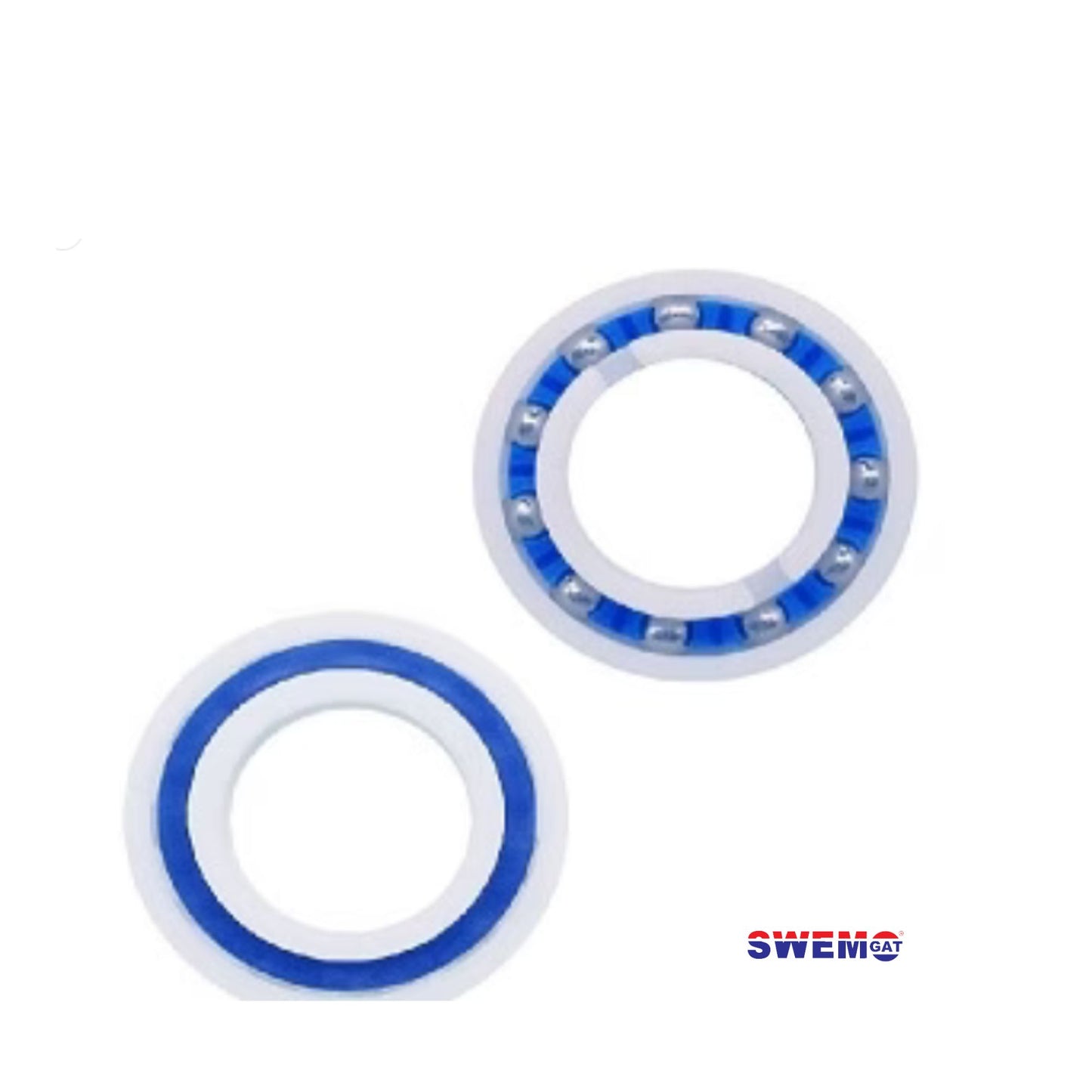

Zodiac MX8/MX6 - Large bearings (2 units)

Bearings that are easy to replace:

• The 2 large bearings that fit on the drive shaft next to the engine of MX8 pool cleaner;
• 3 Large bearings inside each fan assembly (scrubber);
• 1 Small bearing on each drive shaft;

Position of other bearings: Inside engine; wheels and gearbox.

Key components of MX8:

• 2 x Drive shafts
• 2 x Gearbox
• 2 x Fan assembly (scrubbers)
• 1 x Engine
• 16 x Large Bearings
• 14 x Small Bearings

Key components of MX6:

• 1 x Drive shafts
• 1 x Gearbox
• 1 x Fan assembly (scrubbers)
• 1 x Engine

 Exploded diagram  MX6:
