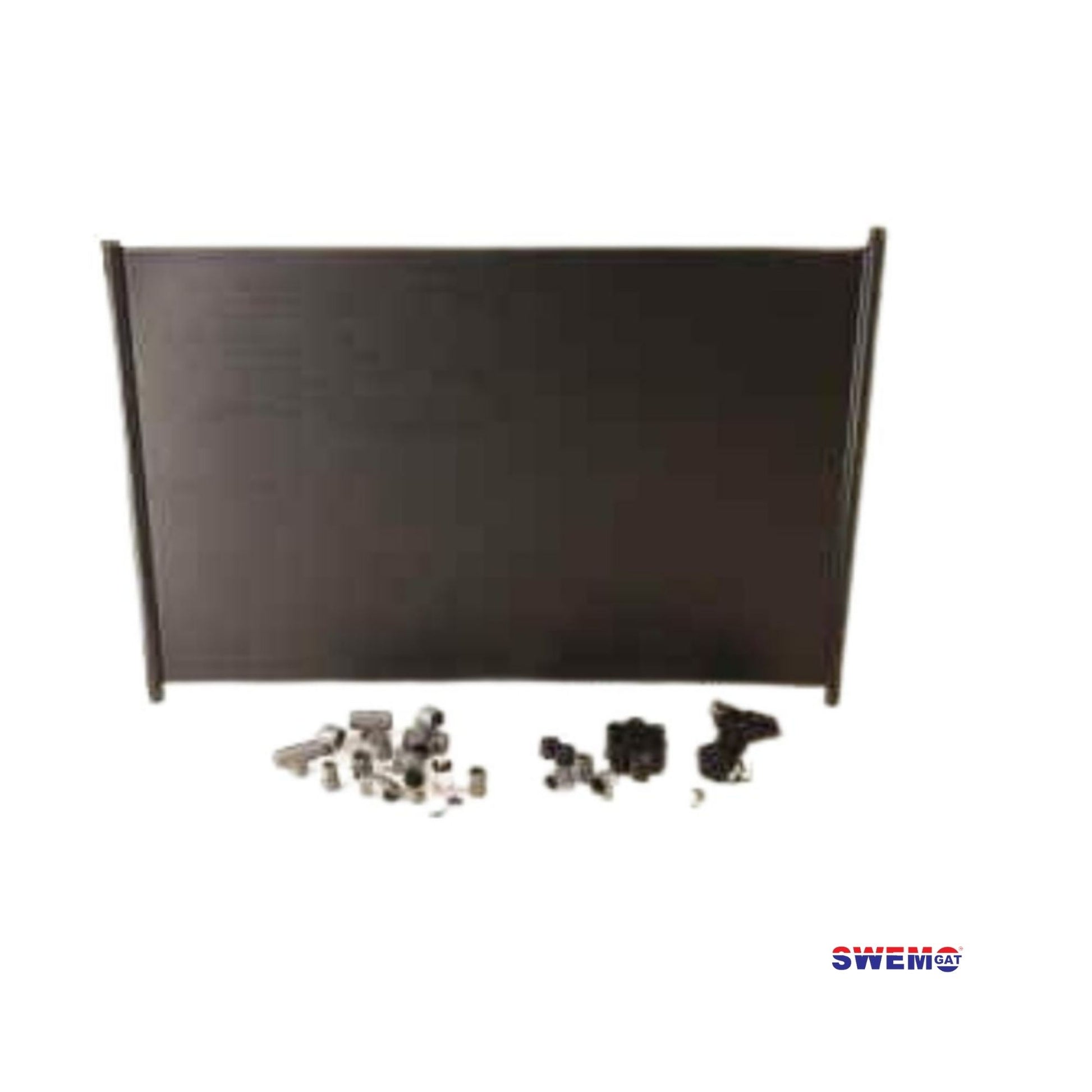

Sun Command Pool Heating 5 Solar Panel DIY Kit complete

  • R 13,199.00




Solar pool heating sizing

For outdoor pools:

  • With Cover: 60000 Litre or with a surface area of approx. 40m2
  • Without Cover: 30000 Litre or with a surface area of approx. 20m2

Indoor Pools:

  • With Cover: 30000 Litre or with a surface area of approx. 20m2

DIY Kit Supplied for the 5 Panels is as follows:

(1) x 500ml PVC Glue
(22) x 50mm Clamps
(2) x EPDM End Caps
(2) x 50mm PVC-Poly Adaptor
(10) x EPDM Connectors
(20) x 50mm PVC Elbows
(4) x 50mm PVC Connectors
(3) x 50mm PVC T-Piece
(4) x 50mm PVC 45 Deg
(1) x Ball Valve Glued - drill 8mm hole {Bypass ballvalve}
(2) x Ball Valve Glued {Shut-off ballvalves}
(1) x 50mm PVC Non-return valve
(1) x PVC tank adaptor
(1) x Nylon Reducing bush
(1) x Vacuum breaker
(2) x PTFE Tape
(30m) x Nylon Ski Rope

Tools Required for Installation

  • Hacksaw
  • Screwdriver
  • Ladder
  • Drilling Machine
  • Extension
  • Hammer
  • Measuring Tape

On a Metal roof extra items required:

  • Pop Rivet Gun
  • Roof Sealer
  • Paint Brush

Diagram of solar pool heating Installation

Solar Swimming Pool Heating Installation Diagram





Swimming Pool Heating Solar Diagram

How many panels do I need:

swimming pool solar heating table

Fact: "More panels equals more heat!"



 Conditional carry-in warranty: 5 years
1.Subject to use of a backing sheet
2.Installation done insuring the panels drain all water when pump is not working
