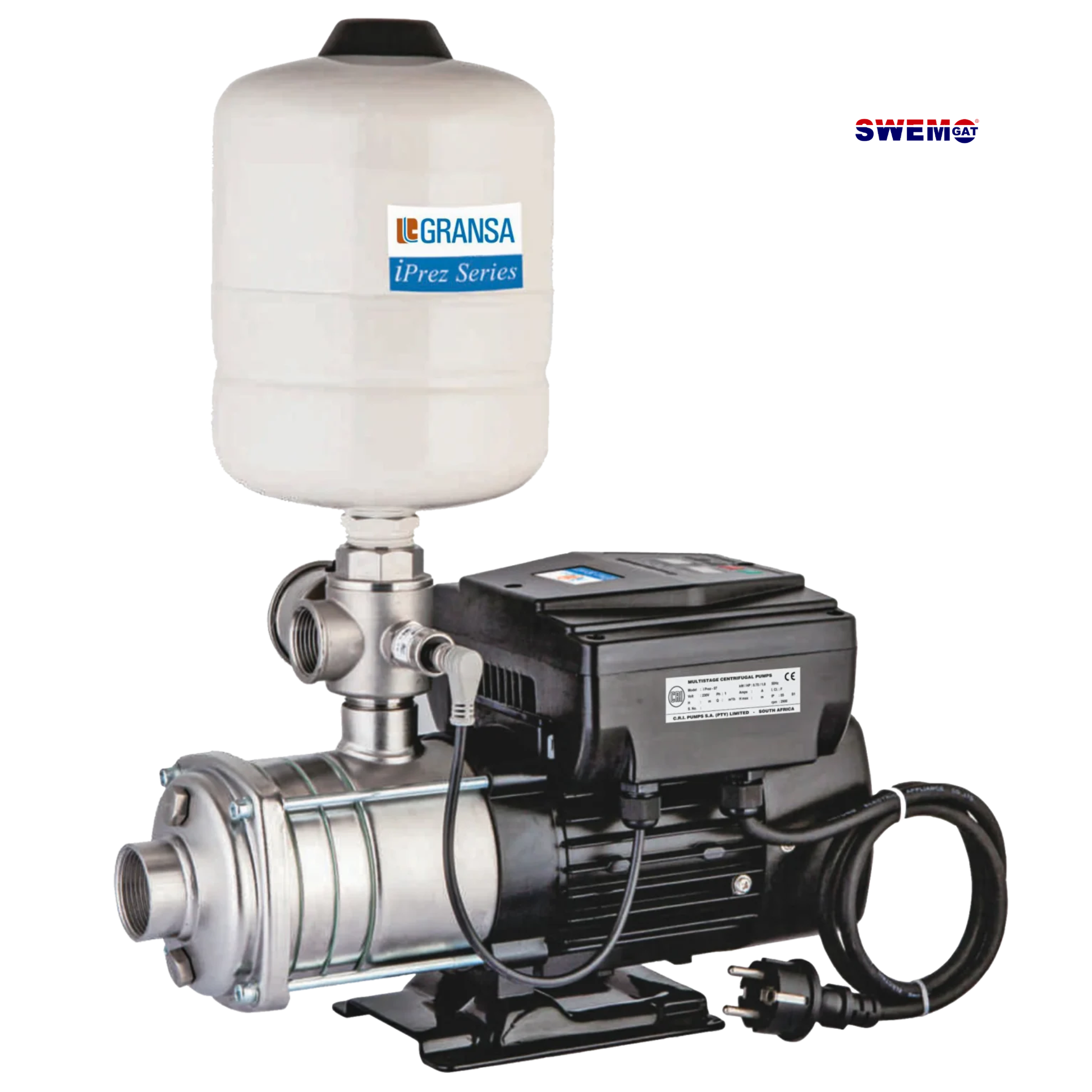

The I-Prez Booster System with VFD is a smart domestic and light commercial pressure-boosting system designed to provide constant water pressure in the pipeline. It uses a built-in Variable Speed Drive / VFD to adjust pump speed according to water demand, helping reduce pressure fluctuations, improve comfort and save energy.
The system uses a pressure transducer to monitor pressure constantly and regulate performance. It includes a horizontal multistage pump, VSD, 5-way connector with built-in non-return valve, pressure tank, pressure gauge and pressure transducer.

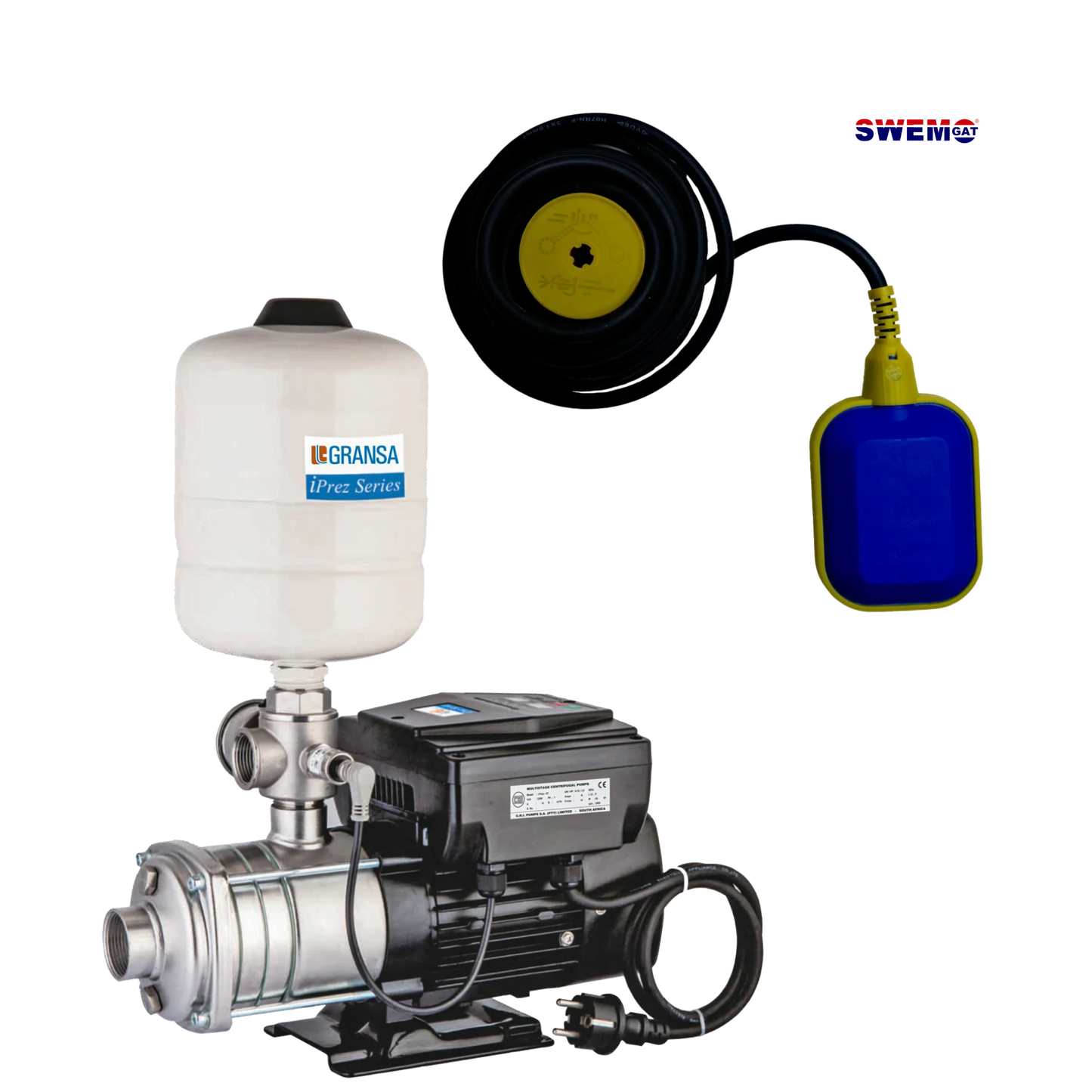

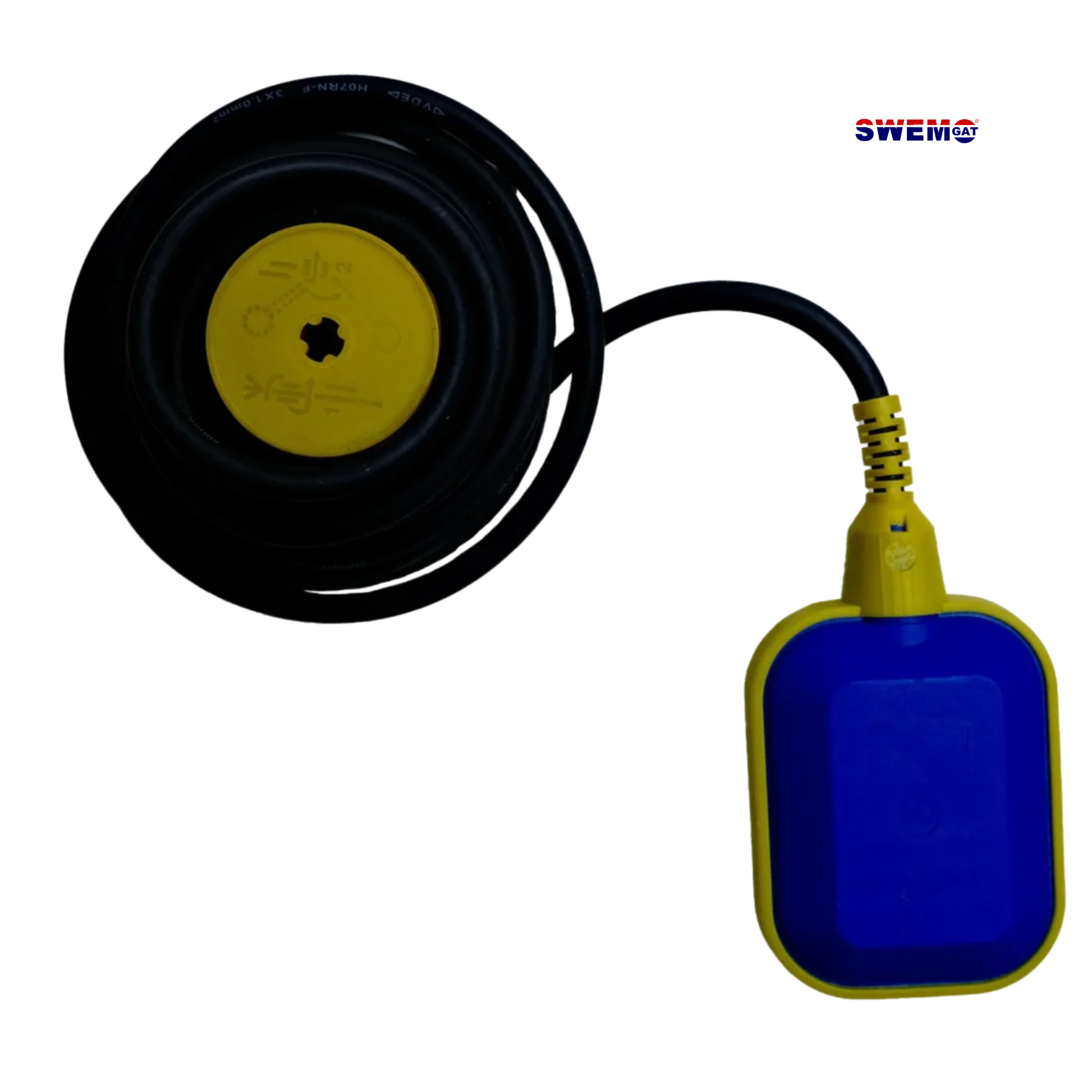

A float switch is available as an optional extra.
Key Features
- Built-in VFD / variable speed drive
- Provides constant pressure in the pipeline
- Wide LCD display for easy operation
- Pressure transducer for accurate pressure monitoring
- 16 bar pressure transducer capacity
- Plug-and-play design
- Soft start for smoother operation and longer pump life
- Fully stainless steel wet parts for hygiene and durability
- Stainless steel 5-way connector with built-in NRV
- Optional float switch terminals available on the drive
- Protects against high voltage, low voltage, dry run, overload and underload
- Designed for clean-water pressure boosting
Available Models
| Model | Power | Inlet & Outlet Size | Pressure Vessel | Suggested Application Guide |
|---|---|---|---|---|
| I-Prez 07N | 0.75kW | 1” x 1” | 2 Litres | Up to 3-bedroom house |
| I-Prez 11N | 1.1kW | 1¼” x 1” | 2 Litres | Up to 4-bedroom house |
| I-Prez 15N | 1.5kW | 1½” x 1½” | 4 Litres | Up to 5-bedroom house |
| I-Prez 22N | 2.2kW | 1½” x 1½” | 4 Litres | Up to 6-bedroom house |
The models power range as 0.75kW, 1.1kW, 1.5kW to 2.2kW, with inlet/outlet sizes from 1” x 1” up to 1½” x 1½”
Technical Specifications
| Specification | Detail |
|---|---|
| System type | Booster system with VFD |
| Pump type | Horizontal multistage pump |
| Power range | 0.75kW, 1.1kW, 1.5kW & 2.2kW |
| Input voltage | 1 Phase, 220V |
| VFD output voltage | 3 Phase, 220V |
| Frequency | 50Hz |
| Output frequency | 20 to 50Hz |
| Pressure setting range | Up to 6.5 bar |
| Pressure transmitter | 24V, 4–20mA |
| Ambient temperature | Up to 40°C |
| Liquid temperature | Up to 70°C |
| Head range | Up to 65m |
| Flow range | Up to 11m³/h |
Typical Applications
The I-Prez Booster System is suitable for:
- Domestic water supply
- Villas and larger homes
- Pressure boosting from storage tanks
- Garden water supply
- Small buildings
- Schools
- RO system feed water
- Light commercial clean-water pressure boosting
Why Choose a VFD Booster System?
A normal fixed-speed booster pump switches on and runs at full speed, even when only a small amount of water is required. The I-Prez VFD system adjusts pump speed according to demand, which gives smoother pressure, reduces unnecessary energy use and places less strain on the pump.
This makes it a strong option for customers who want steady pressure, quieter operation and better efficiency than a basic booster pump.
Important Use Note
The I-Prez Booster System is designed for clean water only. It should not be used for dirty water, sewage, pool water, slurry, sand-heavy water, chemicals, fuel, oil or flammable liquids.
For best performance, install the system with correct pipe sizing, inlet filtration, dry-run protection where required, and professional electrical connection.
