ZonVida Swimming Pool Heating System

Turn Your Backyard into a Warm Water Paradise — Naturally.

Panel size: 3m x 1.25m

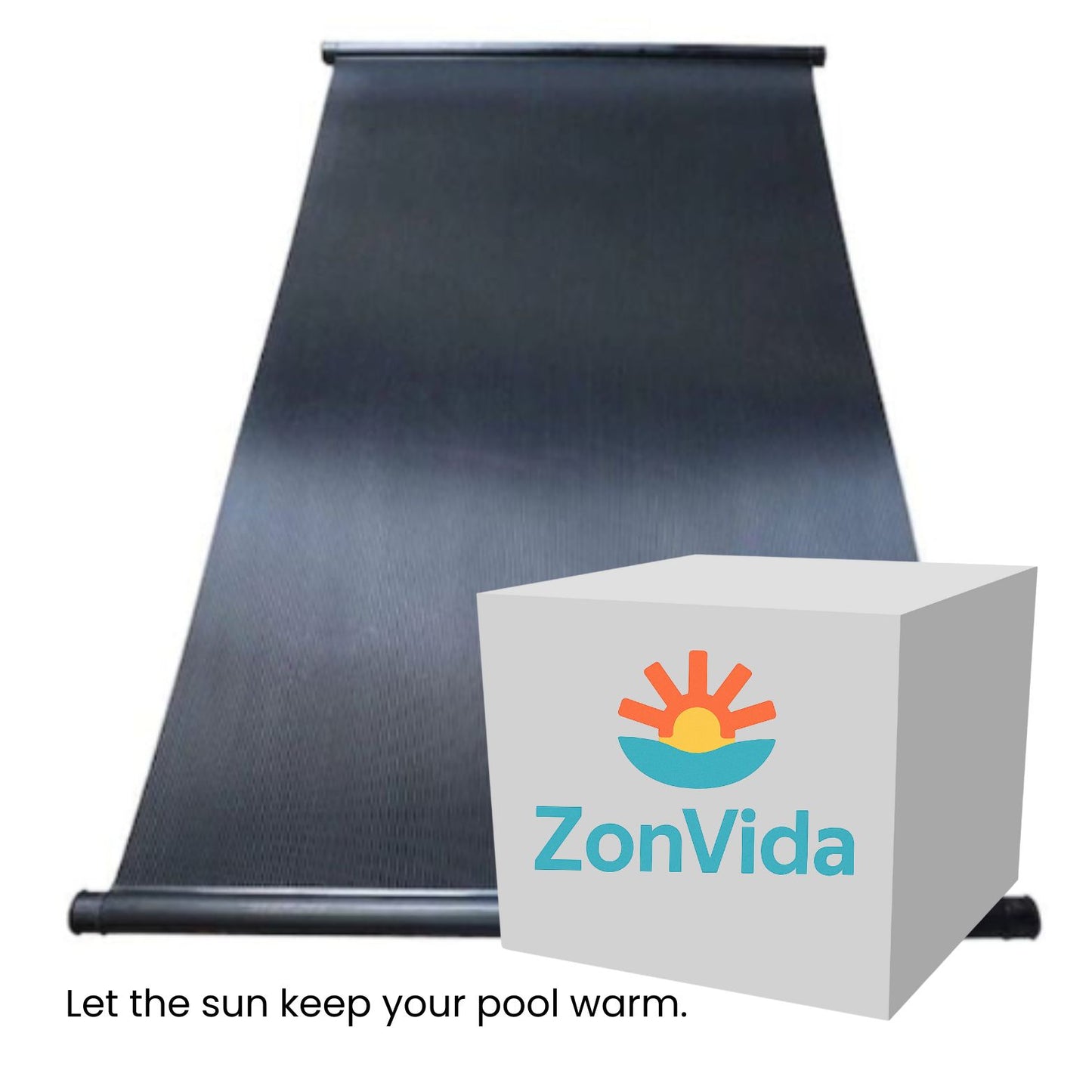

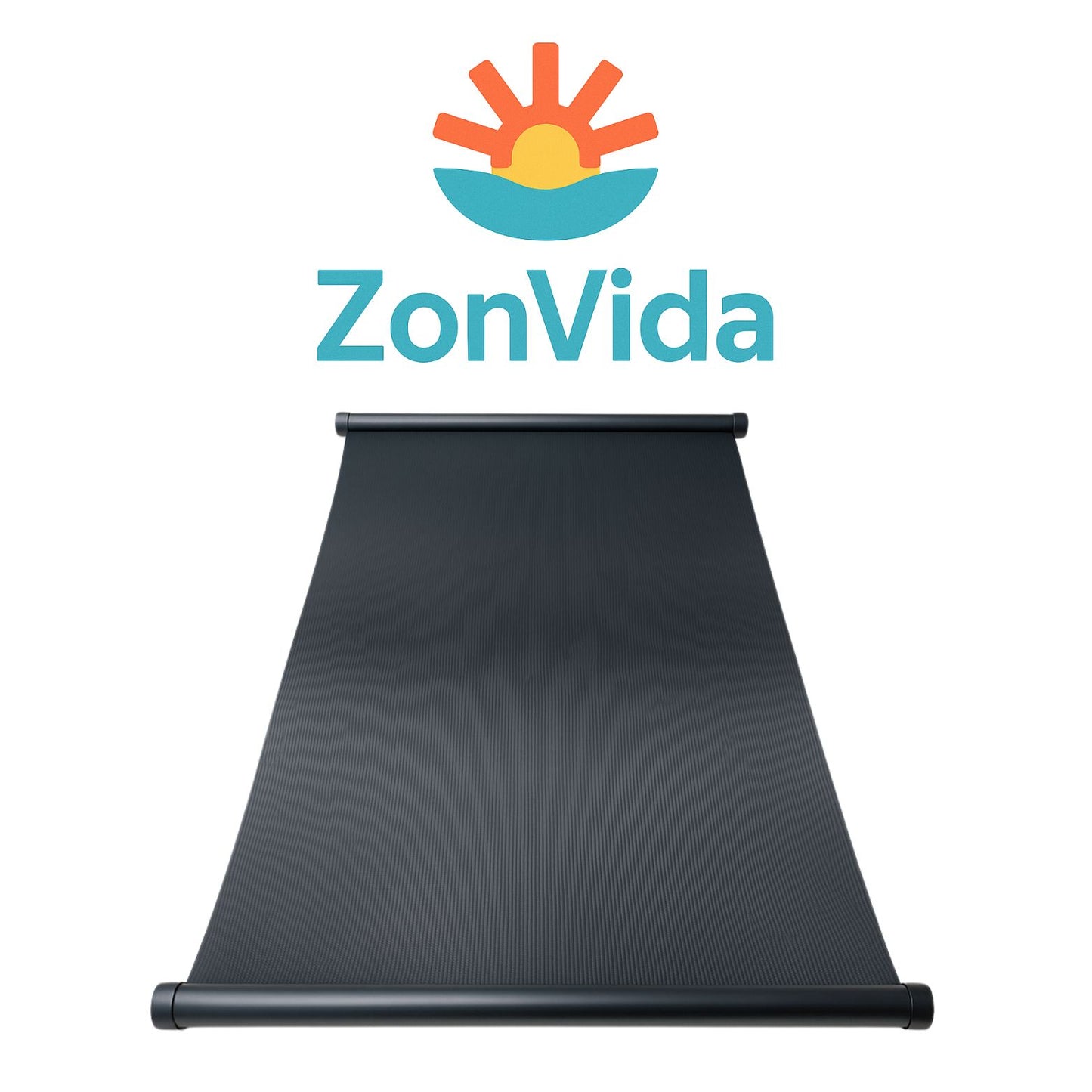

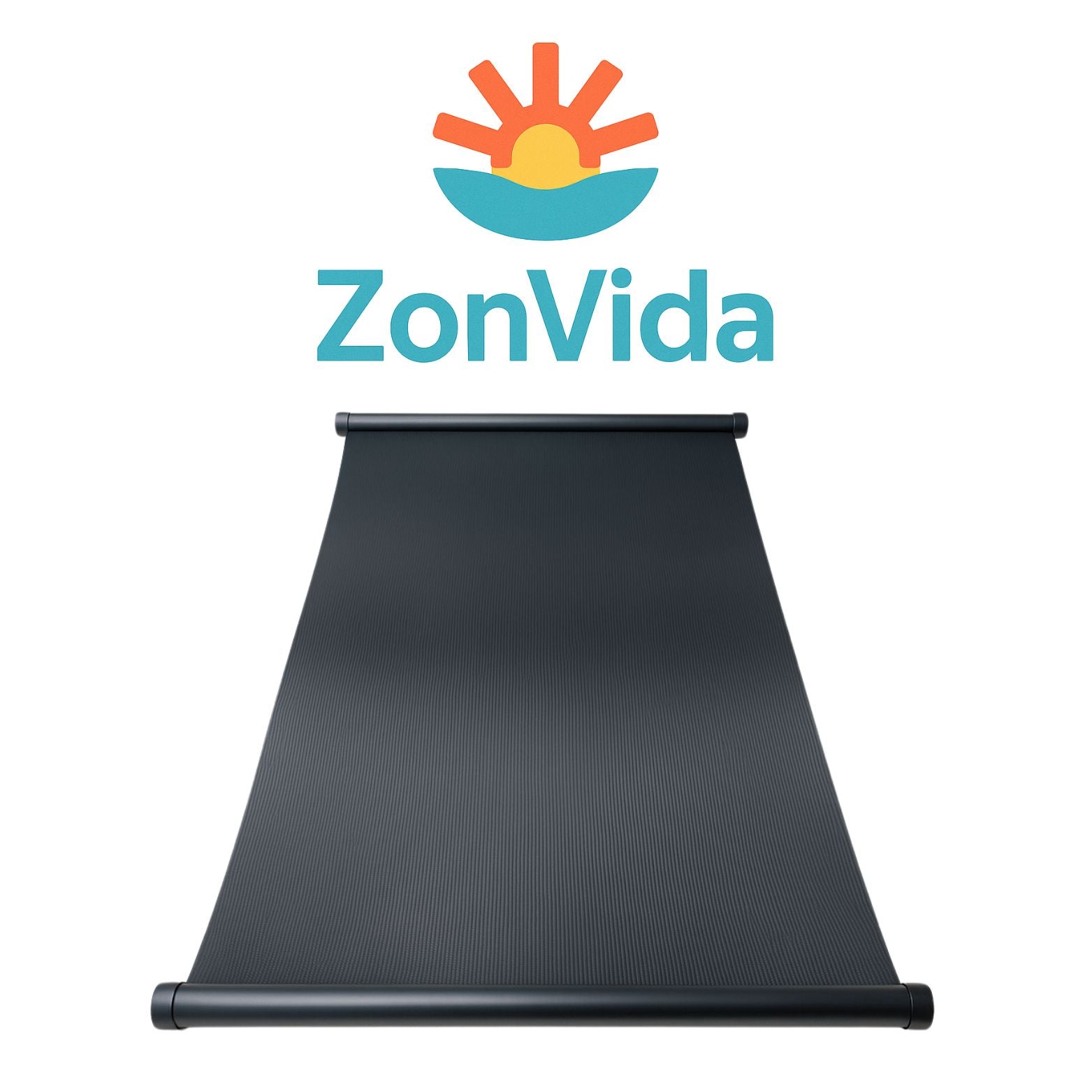

ZonVida Solar Panels are designed to extend your swimming season by harnessing the free, abundant power of the South African sun.  Crafted with UV-stabilised, weather-resistant polypropylene material, these panels efficiently heat your pool water without increasing your electricity bill.

Use of a pool cover is always recommended, not only to eliminate evaporation but also to help retain the water temperature gain during sunshine hours.  One ZonVida panel provide collection of sufficient heat-energy to increase about ten thousand liter of water to an enjoyable temperature.

As example, for a new solar pool heating installation: Five (5) ZonVida panels will be recommended for a 50 000 Liter pool fitted with a pool cover that gets full sun during the day; with a pump system not further that 20 meters from the north-facing, single storey roof where the panels will be installed.  Cold, uncovered and shaded swimming pools will require more panels.

ZonVida panels are secured on a tiled roof with ski-rope tied around the brandering under tiles, while on metal roofs "hoepel" metal brackets or tie-down plastic brackets are used as anchoring point for rope.

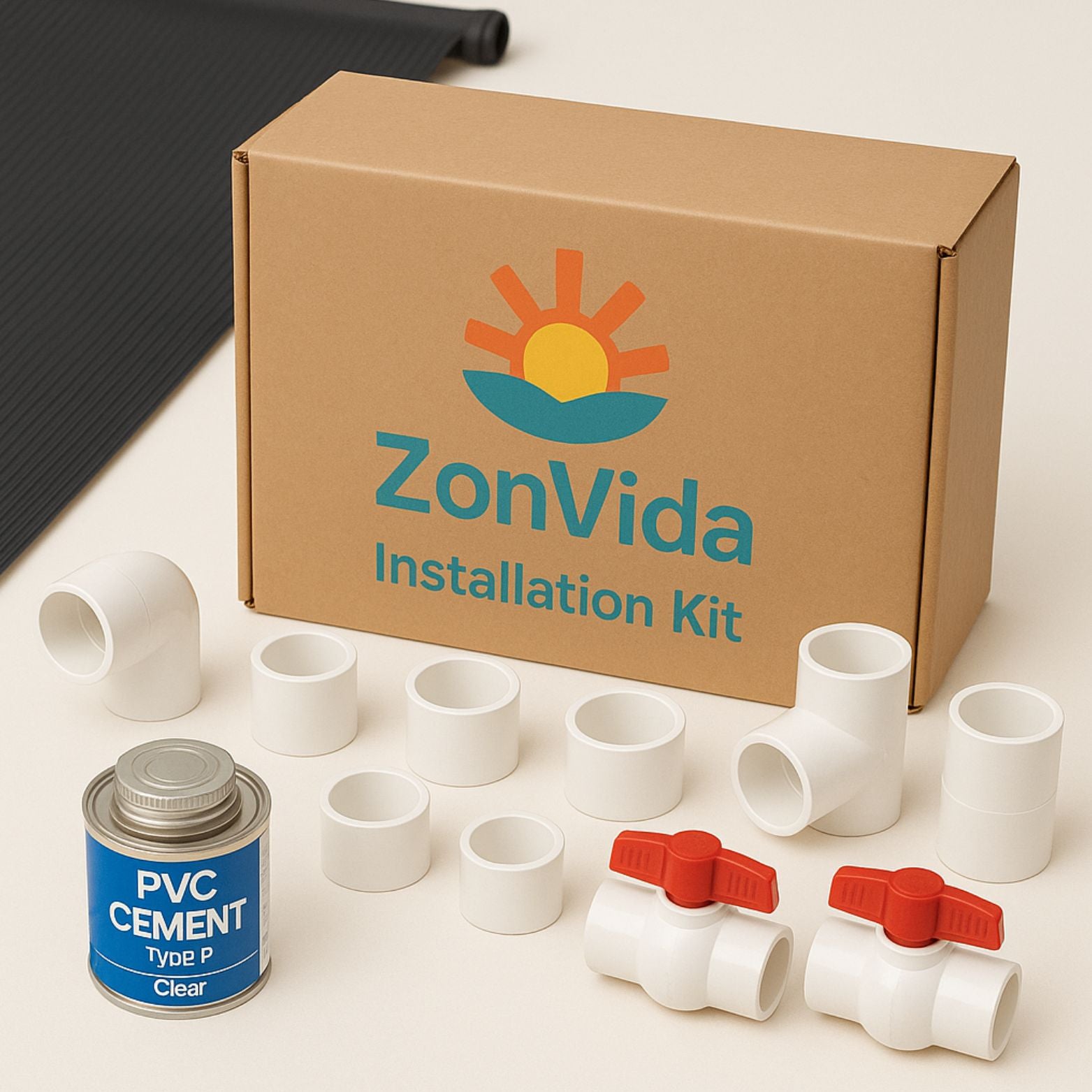

Contents of Installation Kit:

Installation kits includes Ski-rope; Ball Valves; a Vacuum Breakers; EPDM 50mm rubber connectors and end-stops; Hose clamps; PVC fittings and PVC glue.

Excluded: PVC 50mm pipe and holder bats (wall brackets) for the pipe are items that need to be added to your order or bought from a local hardware store.

🌞 Eco-Friendly Heating

Enjoy warm, comfortable water using solar energy — no electricity, no emissions, no running costs.

💧 Efficient Heat Performance

Each panel is engineered for maximum solar absorption and water circulation, ensuring a consistent and even heat distribution across your pool.

🔧 DIY-Friendly Installation

Lightweight, modular, and easy to install. Ideal for homeowners, handymen or technicians. Add panels to suit your pool size and location.

🛠️ Durable & Weather-Resistant

Built to withstand South Africa’s intense sun.

Installation requirements:

The panels can be installed by yourself, but guidance from a Swemgat Technician is required to insure a long life of the product, optimum performance and that the product are covered by the warranty.

Follow the instructions included with the product or send a text message to Swemgat's Whatsapp Support Line for advise.

Warranty:

A standard carry-in warranty of 3 Years applies.
