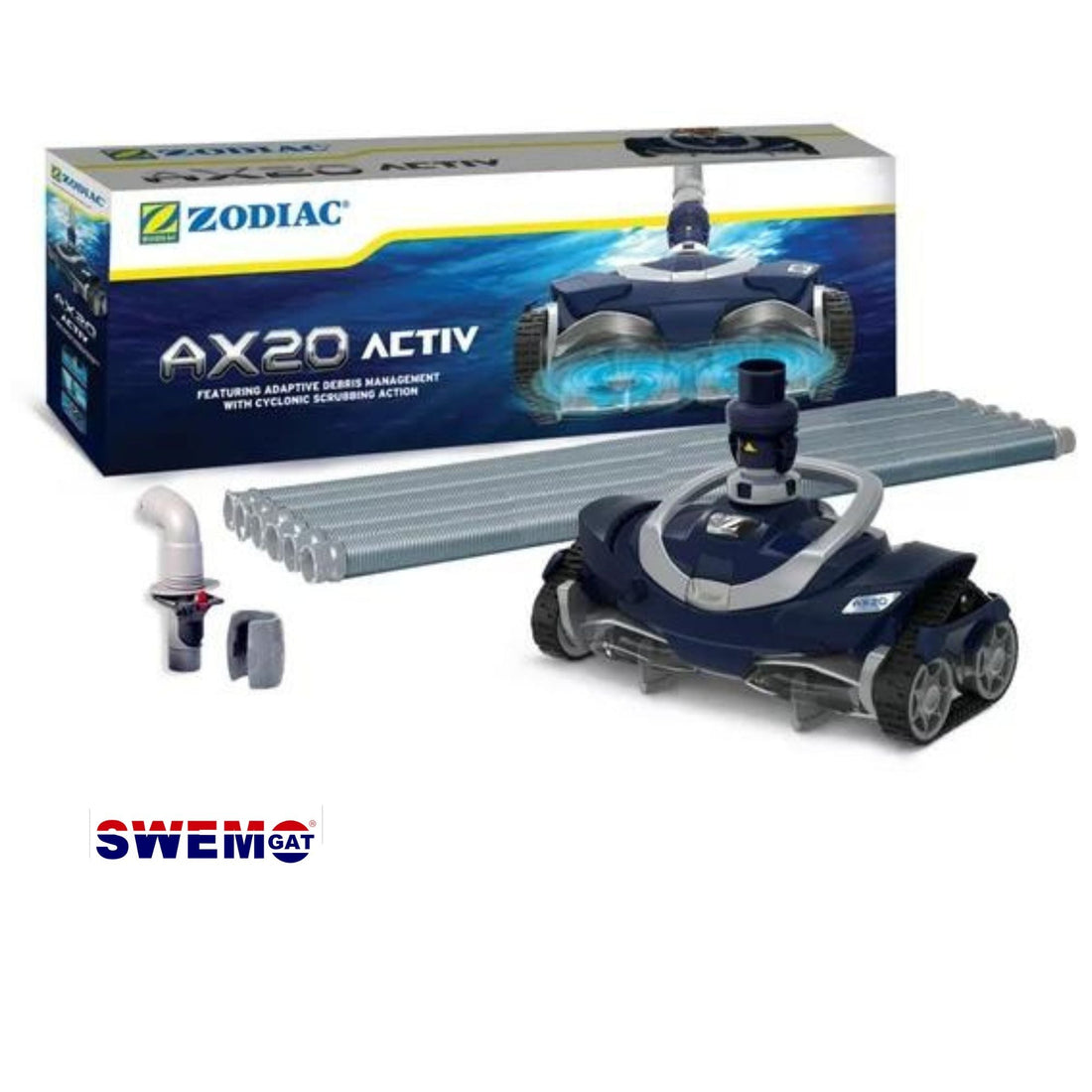

Zodiac AX20 Swimming Pool Cleaner: Complete Guide to Features, Replacement Parts and Why Genuine Spares Matter
If your pool cleaner is not moving properly, struggling to climb walls, or leaving debris behind, the problem is often not your whole cleaner. In many cases, the fix is a replacement track, wheel, gearbox, scrubber, hose part, or flow-control component. That is exactly why the Zodiac AX20 Activ remains such a good choice. It's cleaning both the floor and walls of most in-ground pools with a wide range of pool finishes including concrete, fibreglass, vinyl, tile and chipped tile.
You do not just want a pool cleaner that works when brand new. You want one you can keep running season after season with the right genuine parts. The AX20 Activ pool owner documentation specifically notes that, like most mechanical devices, it needs periodic adjustment, routine maintenance, and replacement of hard-working parts over time, and it advises users to insist on genuine Zodiac replacement parts.
Why buy the Zodiac AX20 Activ?
The Zodiac AX20 Activ pool cleaner is built for households that want stronger suction-side cleaning without stepping into the price range of robotic cleaners. Its key selling points are straightforward: active scrubbing, broad pool coverage, and improved movement across pool surfaces. Zodiac states that the AX20 Activ uses dual active scrubbers, a convertible inlet for small and larger debris, and a design intended to manage sand, algae, and longer debris more effectively than many basic suction cleaners. Zodiac’s product material also highlights debris handling up to about 4 cm, depending on the type of debris being collected.
That makes it a solid option for pool owners dealing with:
- sand and gritty debris
- leaves and garden fallout
- algae film on walls and floors
- stringy debris that often jams weaker cleaners
Who is the Zodiac AX20 best for?
The AX20 Activ is a good fit for pool owners who want:
- a suction cleaner instead of a robotic cleaner
- a unit that can clean floor and walls
- a cleaner compatible with most common pool finishes
- a machine with serviceable and replaceable components
- access to genuine AX20 replacement parts
Zodiac’s product information says the AX20 Activ is suitable for many in-ground pools up to roughly 12 m x 6 m, depending on skimmer position and installation conditions.
Why genuine Zodiac AX20 replacement parts matter
A lot of pool owners make the same mistake: they replace a worn part with a generic alternative, then wonder why the cleaner tracks poorly, loses efficiency, or wears unevenly. The owner manual is clear that non-genuine parts are not made to Zodiac’s specifications. That matters on a cleaner like the AX20 because its movement, suction balance, scrubbing action, and steering all depend on precise interaction between the engine, drive shaft, tracks, wheels, gearboxes, inlet, and flow components.
Using genuine Zodiac AX20 spares helps protect:
- cleaner movement
- wall-climbing performance
- suction balance
- debris pickup
- part longevity
In plain terms: cheap parts can cost more when they cause poor cleaning or extra wear elsewhere.
Zodiac AX20 replacement parts
1. Zodiac AX20 tracks
If the cleaner is slipping, getting stuck, or not moving with consistent traction, worn AX20 tracks are a common cause. The AX20 uses a dedicated track pack of 2, making this one of the most important wear items for restoring proper movement. (Buy here)
2. Zodiac AX20 wheels and wheel pins
If the cleaner feels loose, unstable, or shows irregular rolling movement, the problem may be the wheels, wheel bearings, or wheel pins. These parts support stable movement and drivetrain alignment. (Buy here)
3. Zodiac AX20 gearbox / direction control device
If the cleaner keeps turning incorrectly, loses its pattern, or no longer navigates properly, the likely issue is one of the direction control devices, often referred to by customers as the AX20 gearbox Side A or Side B. These are central to steering and navigation. (Buy here)
4. Zodiac AX20 engine assembly
If suction is present but drive performance is weak, the engine assembly may be worn or damaged. The AX20’s engine is one of the main reasons the cleaner can handle fine debris and stringy debris effectively. (Buy here)
5. Zodiac AX20 drive shaft
If power is not transferring properly through the cleaner, a worn drive shaft assembly can be the cause. This is one of those parts that may not be obvious at first glance, but it is critical to proper movement. (Buy here)
6. Zodiac AX20 cyclonic scrubbers / brushes
If the cleaner is moving but not scrubbing as aggressively as before, the cyclonic scrubbers or brush scrubbers are often due for replacement. These help loosen algae and fine particles from the pool surface. ((Buy here)
7. Zodiac AX20 inlet assembly and inlet reducer
If debris pickup drops off, inspect the inlet assembly and inlet reducer. Since the AX20 is designed around convertible debris management, these components matter for proper debris flow into the cleaner. (Buy here)
8. Zodiac AX20 hose, hose float, AD flow valve and FRV
Sometimes the cleaner itself is not the issue. Poor performance can come from the hose system, hose float, AD flow valve, or flow regulator valve. These parts help maintain correct water flow and cleaner balance. Zodiac’s pack and brochure material list these as core system components. (Buy here)
Zodiac AX20 replacement parts list
| Part No. | Replacement Part | Qty | Details / Specification |
|---|---|---|---|
| 30093801 | Body Top Swivel Assembly AX20 Activ | 1 | Top swivel assembly for hose connection and upper body movement |
| A0427901 | Body Front Panel AX20 Activ | 1 | Front body panel |
| A0428001 | Body Rear Panel AX20 Activ | 1 | Rear body panel |
| 30138500 | Body Left Side Panel with Track Guard AX20 Activ | 1 | Left side body panel with track guard |
| 30138501 | Body Right Side Panel with Track Guard AX20 Activ | 1 | Right side body panel with track guard |
| 30095300 | Chassis Assembly AX20 Activ | 1 | Main structural chassis |
| 30138600 | Body Tray AX20 Activ | 1 | Lower tray / body base |
| 30138700 | Gear Housing Covers A & B | 1 | Gear housing cover set |
| 30093601 | Engine Assembly | 1 | Main engine / drive assembly |
| 30094100 | Drive Shaft Assembly | 1 | Transfers power through the cleaner |
| A0450600 | Body Latch Silver | 1 | Cleaner body latch |
| 30102000 | Inlet Assembly AX20 | 1 | Main inlet section for debris intake |
| A0450200 | Inlet Reducer AX20 | 1 | Reducer insert for inlet configuration |
| 30064101 | Direction Control Device V2 Side A | 1 | Steering / navigation control component |
| 30064201 | Direction Control Device V2 Side B | 1 | Steering / navigation control component |
| R0937500 | Cyclonic Scrubber Kit Black Grey 2pk | 1 | Dual scrubber kit |
| W7230223PK | Ball Bearing Wheels 8pk | 1 | Bearing wheel kit |
| A0434400 | Wheel Suction Cleaner | 1 | Single replacement wheel |
| A0434300PK | Track MXNXT Pack of 2 | 1 | Pair of replacement tracks |
| A0203002 | Wheel Pin Silver | 1 | Single replacement wheel pin |
| F0106100 | Screw M4 x 12 mm Phillips #2 pan head 5pk | 2 | Fastener pack |
| F0106600 | Screw thread-forming #6-18 7/8" Type A Phillips #2 pan head 5pk | 2 | Fastener pack |
| A0358802 | Brush Scrubber MX Silver | 2 | Individual scrubber brush |
| W26060 | Global Hose 1 m Gray/Blue Pack of 30 | 2 | Hose section specification listed in spares references |
| A0219700 | 90 Degrees Flow Elbow | 2 | 90° elbow connector |
| W70263 | Adaptor In-Ground Weir Cuff EVA White | 4 | Weir cuff adaptor |
| W70281C | AD Flow Valve | 1 | Automatic flow control valve |
| A0173800 | Hose Float | 1 | Hose buoyancy/balance float |
| FRV100 | Flow Regulator Valve | 1 | Flow regulator valve |
The parts naming and part numbers above align with widely listed AX20 Activ spare-part references and parts catalogs for the cleaner. (Buy here)
Signs your Zodiac AX20 needs replacement parts
If your cleaner is showing any of the following problems, it is usually time to replace worn AX20 parts instead of replacing the whole unit:
- cleaner not moving properly
- poor wall climbing
- random spinning or weak steering
- reduced scrubbing action
- poor pickup of sand or leaves
- hose connection issues
- cleaner getting stuck more often
- visible wear on tracks, wheels, or brushes
Related pool guides and troubleshooting of problems:
The Zodiac AX20 Activ offers aggressive suction-side cleaning, active scrubbing, and reliable coverage for pool owners. Save money and improve performance by using genuine replacement parts for long-term value.
Buy the complete cleaner when you need proven suction-side performance.
Buy the genuine replacement parts when you need to keep that performance going.
