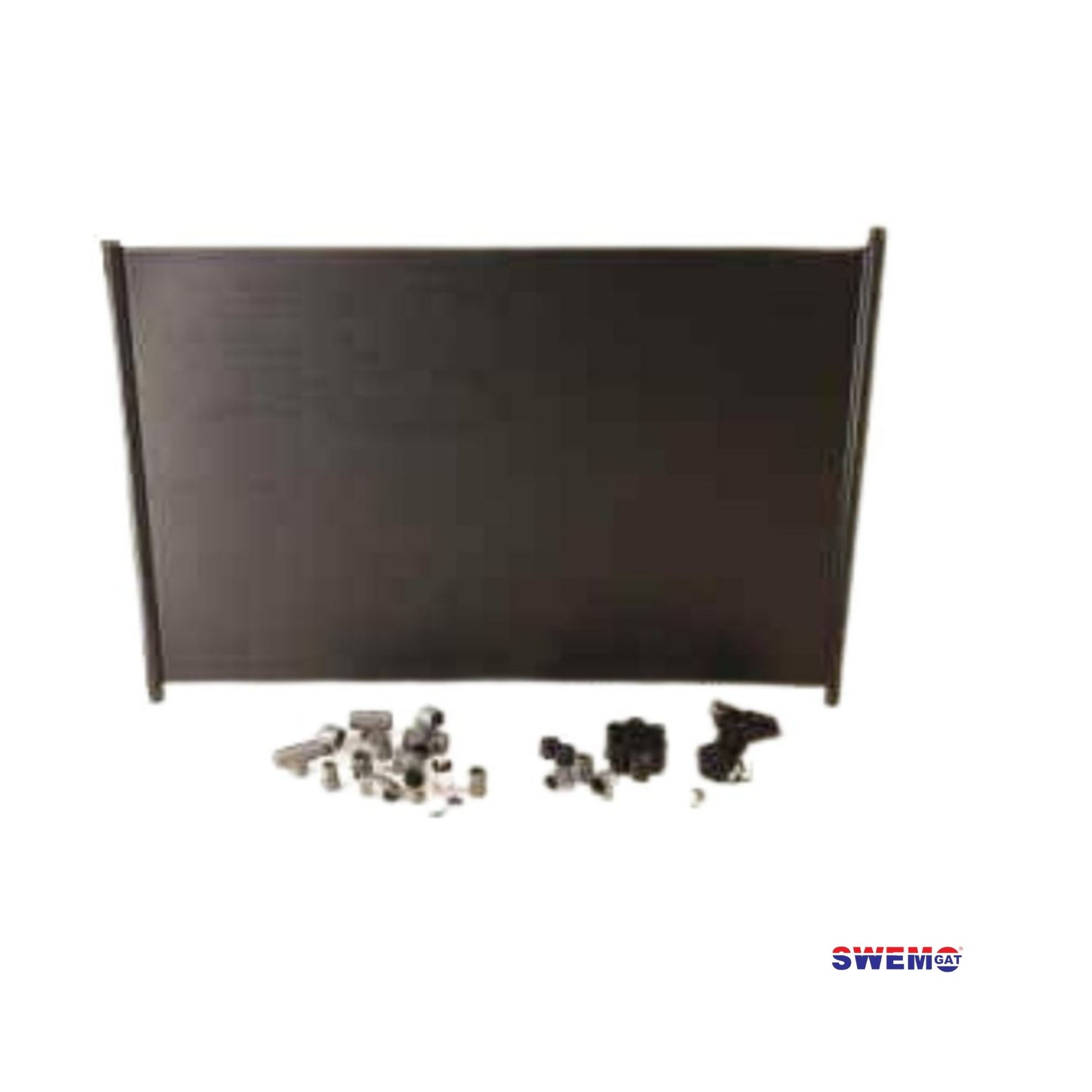

Sun Command Pool Heating 6 Solar Panel DIY Kit complete

Solar pool heating sizing

For outdoor pools:

• With Cover: 70000 Litre or with a surface area of approx. 48m²
• Without Cover: 35000 Litre or with a surface area of approx. 25m²

Indoor Pools:

• With Cover: 35000 Litre or with a surface area of approx. 25m²

DIY Kit Supplied for the 6 Panels is as follows:

(1) x 500ml PVC Glue
(26) x 50mm Clamps
(2) x EPDM End Caps
(2) x 50mm PVC-Poly Adaptor
(12) x EPDM Connectors
(20) x 50mm PVC Elbows
(4) x 50mm PVC Connectors
(3) x 50mm PVC T-Piece
(4) x 50mm PVC 45 Deg
(1) x Ball Valve Glued - drill 8mm hole {Bypass ballvalve}
(2) x Ball Valve Glued {Shut-off ballvalves}
(1) x 50mm PVC Non-return valve
(1) x PVC tank adaptor
(1) x Nylon Reducing bush
(1) x Vacuum breaker
(2) x PTFE Tape
(35m) x Nylon Ski Rope

Tools Required for Installation

• Hacksaw
• Screwdriver
• Ladder
• Drilling Machine
• Extension
• Hammer
• Measuring Tape

On a Metal roof extra items required:

• Pop Rivet Gun
• Roof Sealer
• Paint Brush

Diagram of solar pool heating Installation

How many panels do I need:

Fact: "More panels equals more heat!"

 Conditional carry-in warranty: 5 years
1.Subject to use of a backing sheet
2.Installation done insuring the panels drain all water when pump is not working
